Grow Rack - Automated Vertical Propagation Rack
Grow Rack - Automated Vertical Propagation Rack
Couldn't load pickup availability
Share
Note: Shipping is Available in North America Only
We DO NOT sell parts individually or unassembled kits
Returns on this product not accepted
Features
- Focus on being a farmer instead of an engineer.
- Eliminate trips to the hardware store.
- Spend your time focusing on running your farm, working a day job, or completing other tasks while your plants continually get the care they need.
- Simply set the timers & fill the reservoir with water.
- Each flood tray is independently adjustable.
- Flexible heavy-duty vinyl tubing resists leaks when bumped during maintenance.
- 2 screens at each inlet & outlet to catch debris.
- All racks on casters for easy moving & maintenance.
- This is flexible tubing. Even after installation, it may sag and twist vs. the straight connection you would see when using a pipe or PVC to plumb in the system.
- Because of all of the things that can happen in transit, small leaks in connections can occur. Some clamps may need tightening, or drains may require some extra turns. These tasks are all part of the regular maintenance of a flood and drain system.
INCLUDED:
- 6500K T-5 LED Lights (4 per shelf) *See specs at bottom
- 1500-2700 GPH Water Pump
- 2' x 4' flood trays
- Timers

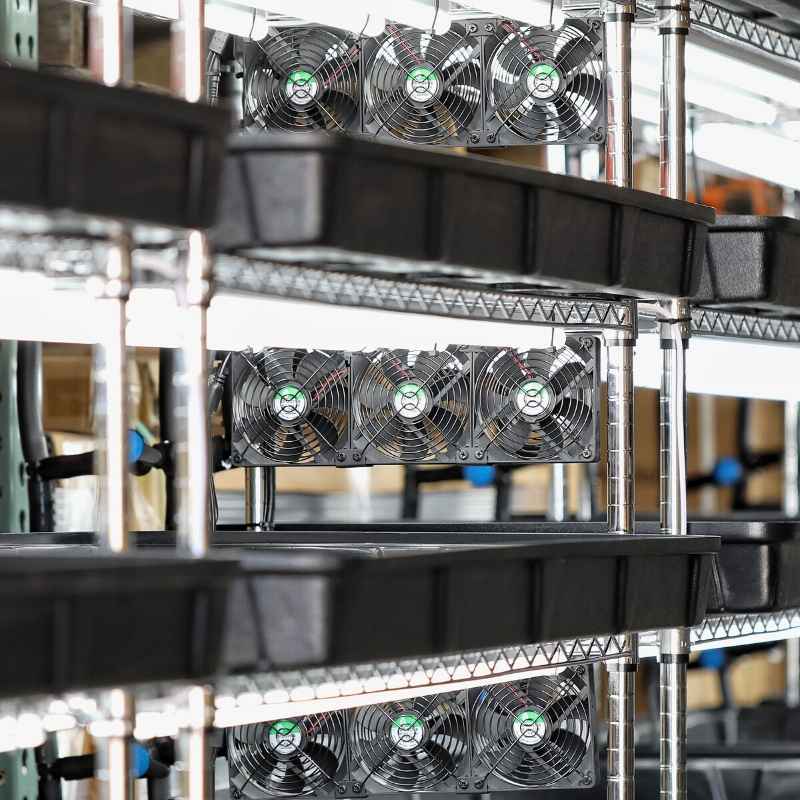

- Cooling Fans
- 24/7 Aerators
- 1 Full-system Micro Filter
- Flush Valve
- Heavy Duty Ball Valves
- 38 Gallon Reservoir
Recommended for flood & drain systems:
Hemp, rockwool, or plugs
5 Tier
- Fits 20 flats for sprouting & microgreens
- Fits 16 flats for germination, propagation & microgreens
- Fits 12 flats for herbs, fodder & wheatgrass
NO GLUE. NO THREADS. NO LEAKS.
Easily serviceable for cleaning.
ORDERING 3+ RACKS?
Reach out for a custom quote!
contact@bootstrapfarmer.com
Ships with a roughly a 5-day lead time.
FAQ
Distance between bottom of lights and top of flood tray:
3 tier: 13.5"
4 tier: 8.5"
5 tier 6.5"
The overall dimension of the unit including fan, cord & plumbing:
52" wide x 77" high x 29" deep
Outer dimensions of the flood tray:
45½" x 25½" x 3½"
Weight per unit (without 300 lb full reservoir water weight):
Roughly 180 lbs on castors
Amperage per unit:
5 tier - 6.8 amps
4 tier - 5 amps
3 tier - 3.5 amps
Disclaimer:
Each rack has an electrical draw that can add up. Please consult with an electrician when considering multiple racks on a single circuit.
LED Light Specs
- 18W +- 10%
- Color Temp 6500K
- Ra 80
- Lumens Efficiency 100LM/W
- Lumens 1800LM
- Beam Angle 120
- PF 0.9
- Voltage AC85-27 7V
